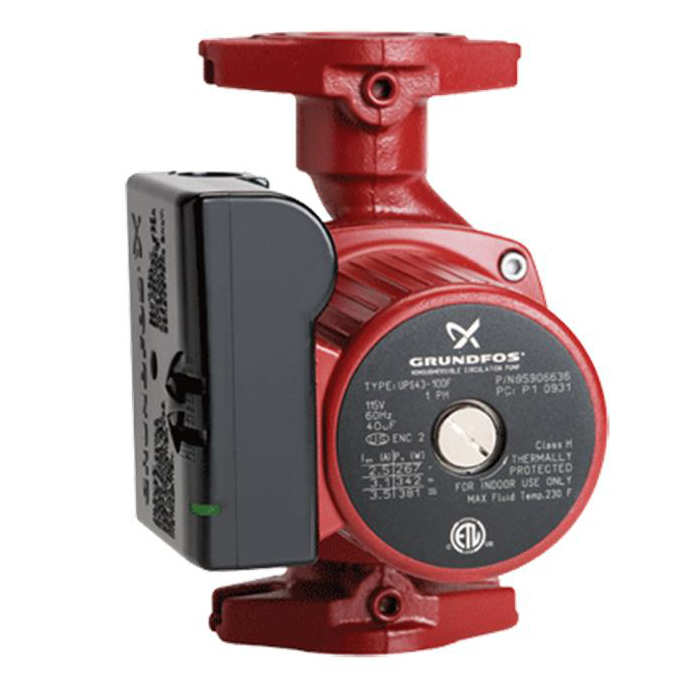

95906636 Grundfos UPS43-100F Cast Iron VersaFlo Circulator Pump 115V 1/3 HP 3-Speed
Part #GRUUPS43100F115
MFG #95906636
Manufacturer Name : Grundfos
- Circulator Pump
- Type Wet Rotor, 3-Speed, In-Line
- Applicable Standard ANSI/NSF 61, CSA, CUL, ETL (Canada and US), UL, UL (Canada and US)
- End Connection GF 40/43 Flanged x GF 40/43 Flanged
- Overall Dimensions 6.69" Length x 8.5" Height
- Flow Rate 0 to 65 GPM
- Discharge Head 100 Decimeter
- Casing Material Cast Iron
- Shaft Material Aluminum Oxide Ceramic
- Impeller Material Polyethersulfone Composite
- Impeller Design Closed
- Warranty 36 Month Limited from Date of Manufacture
- Shaft Seal Details Ceramic Face
- Power Rating 1/2 HP
- Input Supply Rating 370 Watt at 115 Volt 60 Hertz 1 Phase 3.5 Amp
- Temperature Rating 36 to 230 Deg F Liquid for Closed System
- Pressure Rating 145 PSI
- Motor Type Permanent Split Capacitor, 2 Pole
- Options Cast Iron Flange with Terminal Box
- Inclusions/Features Whisper Quiet Operation, Built-In Timer, Line-Cord and Aquastat, Unique Wet Rotor Design, Check Valve, Saves Upto 12000 Gallons
- Application Boiler/Hydronic Heating, Ground-Source Heat Pumps, Radiant Floor Heating, Hydronic and Fan-Coil Heating, Solar Heating, Heat Recovery/Heat Pumps, Residential or Light Commercial
- Material Aluminum Stator Housing, EPDM Rubber O-Ring, Stainless Steel Rotor Can
- Install Instructions
Specification Sheet - UPS is a three-speed circulator pump designed for heating and air-conditioning systems and is also used for central and district heating systems. The pump provides reliable and maintenance-free operation.
