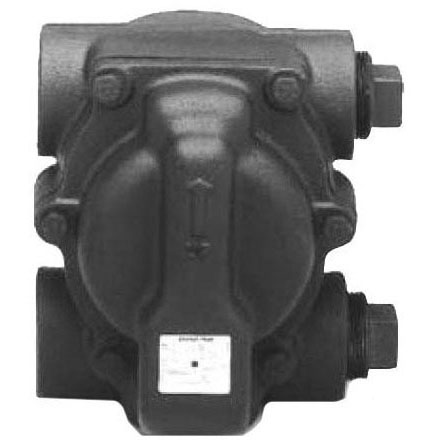

401629 FT015H 2 15# F&T TRAP
Part #HOF401629
MFG #401629
Manufacturer Name : Hoffman Specialty
- Steam Trap
- Type Float, Thermostatic
- Applicable Standard A-A-60001 Type VI, Class 1-5
- Nominal Size 2"
- End Connection Female Threaded x Female Threaded
- Condensate Capacity 9800 Lb/HR
- Material Cast Iron
- Material Specification ASTM A126-71
- Temperature Rating 377 Deg F
- Pressure Rating 175 PSIG
- Differential Pressure Rating 15 PSI
- Media Handled Steam
- Inclusions/Features Stainless Steel Valve Pin and Seat, Stainless Steel Float, Stainless Steel Lever Assembly, Stainless Steel Thermostatic Air Vent, Grade 5 Cover Bolts
- Application Commercial and Industrial Heating System
- Maximum Body Design Pressure 250 PSIG (3/4 to 1-1/4"), 175 PSIG (1-1/2 to 2")
- Weight 38 Lb
- Warranty 2 Year from the Date of Manufacture or 1 Year from the Date of Installation
- Specification Sheet
- Stainless Steel Internal Component; Resistant to Water Hammer and Corrosion; Below Condensate Level Seat Design Prevents Steam Leakage; Rugged Thermostatic Element Eliminates Air Binding; Allows Positioning Options for Easy Service; Additional Inlet Provides a Convenient Location for Vacuum Breakers or Separate External Air Vents; Vacuum Breakers are Required for System with a Modulating Temperature Regulating Valve; External Air Vents are Required when the Trap Discharges Into a Wet Return Line; Additional Outlet Provides a Convenient Location for a Test Valve, Which Eliminates the Need for a Costly Trap Test Chamber and Electronic Monitors; 2 Year from the Date of Manufacture or 1 Year from the Date of Installation Warranty
