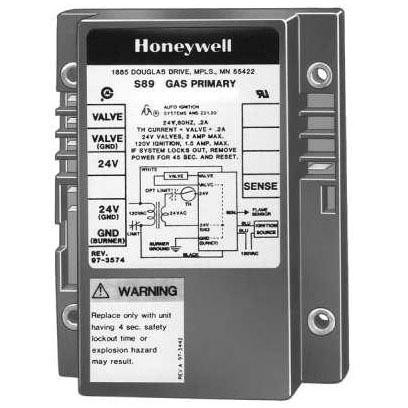

S89F1098/U Honeywell 2 Rod Spark Ignition Control
Part #HONS89F1098
MFG #S89F1098/U
Manufacturer Name : Honeywell
- Ignition Control Module
- Type Direct Spark
- Fuel Type Natural, LP Gas
- Flame Sense Type Two Rod
- Ignition Source External High Voltage Spark Generator
- Ignition Sequence Single Trial
- Ignition Trial Time 4 Second
- Prepurge Time 30 Second Minimum
- Flame Failure Response Time 2 Second
- Valve Rating 2 Amp at 24 Volt AC
- Electrical Rating 24 Volt AC at 60 Hertz
- Size 1-15/16" Length x 4-1/16" Width x 5-1/4" Height
- Temperature Rating -40 to 147 Deg F
- Application Gas-Fired Furnaces, Boilers, and Other Heating Appliances
- Approval CSA
- Flame Failure Re-Ignition Time 0.8 Second Maximum
- Lockout Timing 4 Second
- Install Instructions
Specification Sheet - S87 Ignition Modules Provide Electronic Control of Direct Spark Ignition Systems, with External Spark Transformers. Used on Gas-Fired Furnaces, Boilers, Conversion Burners and other Heating Appliances; Controls Ignition Sequence and Gas Control Operation in Direct Spark Ignition Systems; Controls Separate 120 Volt Ac Spark Generator that Provides High Voltage Potential for Main Burner Ignition; Lockout After One Trial for Ignition if Main Burner Fails to Ignite; Reset from Thermostat After Lockout. Uses Separate Electrodes for Spark Ignition and Flame Sensing; Use any 24 Volt Ac Combination Gas Control Designed for Direct Spark Applications and Rated at 2 Amp or Less
