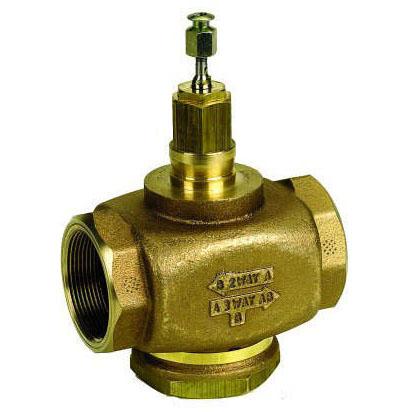

V5011N1099/U Honeywell 2" FNPT Steam 2 Way Globe Valve
Part #HONV5011N1099
MFG #V5011N1099/U
End Connection : Female Thread
Manufacturer Name : Honeywell
Material : Red Brass
Valve Size : 2"
- Globe Valve
- Type 2-Way Globe Valve
- Applicable Standard ANSI/ASME
- Nominal Size 2"
- End Connection Female Threaded x Female Threaded
- End to End Distance 5-1/4"
- Body Material Red Brass
- Stem Material Stainless Steel
- Seal Material Non-Stick
- Disc Material Brass
- Actuator Type Electric/Linear Pneumatic
- Positioner Type Direct and Reverse Acting
- Temperature Rating 36 to 248 Deg F (Water)
- Pressure Rating 217 PSI at 248 Deg F
- Inclusions/Features Brass Ball, Stainless Steel Seat, Brass Plug, Stroke, Bonnet, Brass Cartridge, Stainless Steel Trim
- Application Steam, Water, Glycol
- Overall Dimension 4-3/4" Depth x 11-5/16" Height
- Bonnet Size 1-3/8"
- Flow Capacity 46.8 Cv
- Install Instructions
Specification Sheet - Spring-Loaded; Self-Adjusting Packing; Steel Stem Prevents Corrosion; Valve Designs Provide Equal Percent Characteristics of Flow for Close Control of Water and Linear Characteristic of Flow for Close Control of Steam or Chilled Water; Valve Utilize Direct Mounting
