Part #HTPPH130119

MFG #PH130-119

Specifications

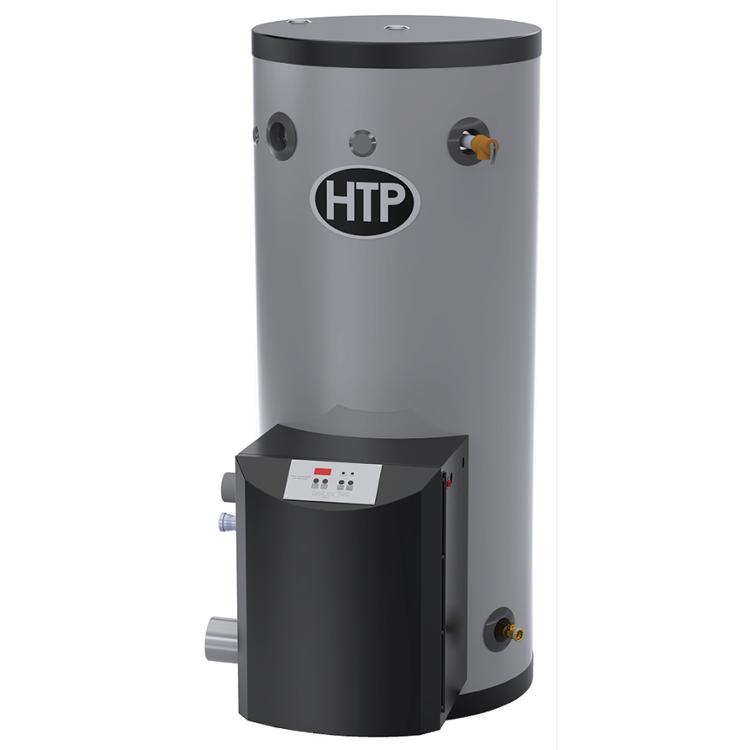

• Gas Water Heater
• Type Condensing
• Applicable Standard ETL (Canada and US), NSF, AHRI
• Inlet/Outlet Connection 1-1/2" Threaded x 1-1/2" Threaded
• Gas Type Natural/LP
• Gas Connection 3/4"
• Relief Valve Details 3/4" T and P Relief Valve Supplied
• Venting Type Direct
• Draft Hood Outlet/Vent Size 2"
• Input Supply Rating 35000 to 130000 BTU/HR
• Tank Dimensions 27" Diameter x 74" Height x 34-1/4" Depth
• Tank Material 316L Stainless Steel
• Tank Capacity 119 Gallon
• Tank Warranty 7 Year (Residential), 3 Year (Commercial)
• GPH Recovery 152 GPH at 100 Deg F
• Ignition Type Spark
• Insulation Details 2" Thick Foam
• Burner Type High-Grade Stainless Steel Inconel Premix
• Energy Saver Conformance Yes
• Options Outdoor Sensor, PVC Concentric Vent Kit, Stainless Steel Outside Termination Vent Kit, Condensate Neutralizer, PC Connection Cable with Software, Sanitizer Booster Kit
• Inclusions/Features Intake PVC Tee with Screens, Exhaust PVC Coupling with Screens
• Auxiliary Connection Size 1/2" Female Threaded
• Thermal Efficiency 96 Percent
• Maximum Temperature Limit 160 Deg F
