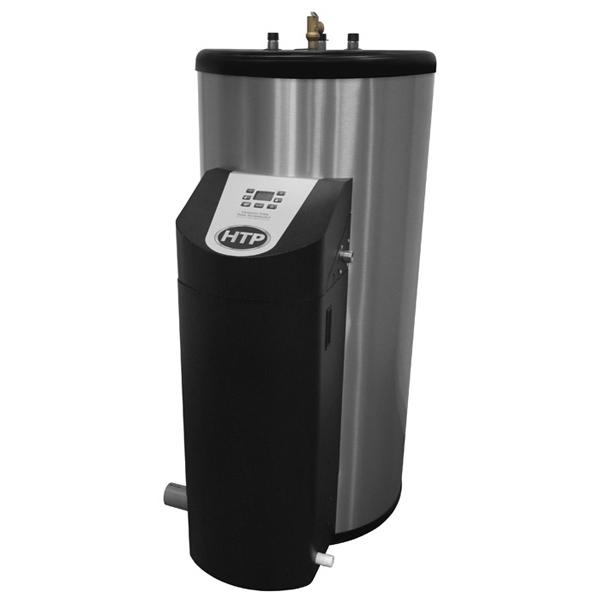

Part #HTPPH7680LP

MFG #PH76-80LP

Specifications

• Gas Fired Water Heater
• Type Light Duty, Durable, High Performance
• Inlet/Outlet Connection 3/4 Inch Threaded x 3/4 Inch Threaded
• Gas Type Liquid Propane
• Gas Connection 1/2 Inch
• Relief Valve Details 3/4 Inch Female Threaded T and P Relief Valve Supplied
• Venting Type Direct, Sidewall/Unbalanced
• Draft Hood Outlet/Vent Size 2 Inch
• Input Supply Rating 25000 to 76000 BTU/Hour
• Tank Dimensions 23 Inch Diameter x 69 Inch Height x 32.5 Inch Depth
• Tank Material 316L Stainless Steel
• Tank Capacity 80 Gallon
• Tank Warranty 7 Year (Standard Residential), 10 Year (Extended Residential), 3 Year (Standard Commercial), 5 Year (Upgraded Commercial)
• GPH Recovery 98 GPH at 90 Deg F
• Ignition Type Spark
• Burner Type High-Grade Stainless Steel Inconel premix
• Energy Saver Conformance Yes
• Options Outdoor Sensor, PVC Concentric Vent Kit, Polypro Vent Kit, Stainless Steel Outside Termination Vent Kit
• Inclusions/Features Intake PVC Tee with Screen, Exhaust PVC Coupling with Screen, Temperature/Pressure Relief Valve, Condensate Cartridge
• Applicable Standard ETL (Canada and US), NSF, AHRI
• Lead-Free
• Auxiliary Connection Size 3/4 Inch Threaded
• Thermal Efficiency 95 Percent
• Temperature Rating 160 Deg F
