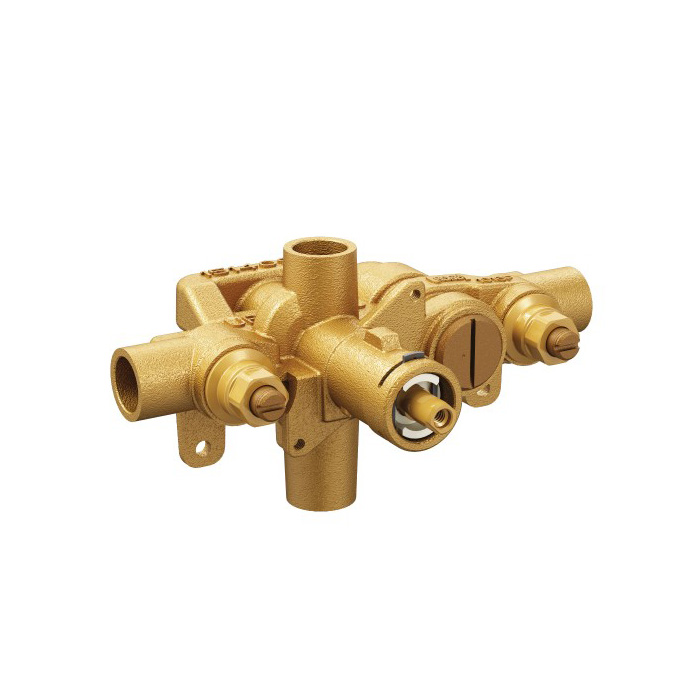

3570 M-Pact Moentrol 1/2" Rough In Valve With Pressure Balancing Check Stops And Volume Control
Part #M3570
MFG #3570
Manufacturer Name : Moen
- Changing the Look of Your Bathroom Has Never Been Faster and Easier; The M-Pact Common Valve System Allows You to Upgrade the Trim Style or Swap Out Finishes on Your Fixtures without Replacing the Valves; So Once the System is in Place You Can Change Your Decor as Often as You Want at any Point In-Time-During Construction Process or Years Down the Road; All it Takes is a Few Minutes; Best of All the M-Pact Common Valve System is as Easy to Install as a Standard Valve; Equipped with the Moentrol Pressure-Balancing Control Valve: Control Allows You to Adjust Both Water Volume and Temperature; Pressure-Balancing Feature Helps Maintain Temperature Even when Other Water Sources in the House are in Use; Built on the MOEN M-Pact Common Valve System Allowing You to Update the Faucet Style in the Future without Replacing any Plumbing; Adjustable Temperature Limit Stop to Control Maximum Hot Water Temperature, 1225 Cartridge Design; 5 Year for Commercial, Lifetime Limited Warranty
- Install Instructions
Specification Sheet - Tub/Shower Valve
- Type 4-Port, Pressure Balancing
- Applicable Standard ASME A112.18.1M, CSA B125, ANSI A117.1
- Inlet Size 1/2"
- Handle Material Brass
- Valve Material Brass
- Number Of Valves/Handles 1
- Inlet Connection CC
- Outlet Connection 1/2" CC
- Flow Rate 7.2 GPM at 60 PSIG (Tub), 6.3 GPM at 60 PSIG (Shower)
- Inclusions/Features Adjustable Temperature Limit Stop to Control Maximum Hot Water Temperature, Volume Control and Integral Checks, Cartridge Design
- Used On Item Tub/Shower
- Warranty 5 Year (Commercial), Lifetime Limited
