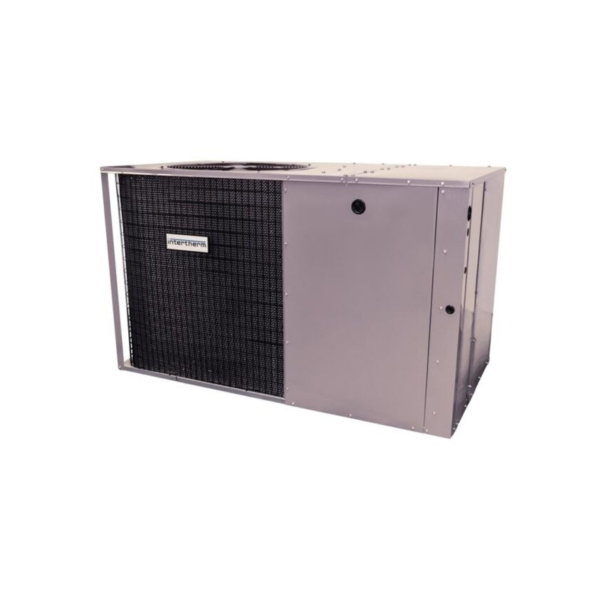

1044682 Miller 2.5 Ton 13.4 SEER2 R454B Packaged A/C Unit
Part #MILP95RD030K
MFG #1044682
Manufacturer Name : Miller
- The P95 Series single packaged air conditioners are high efficiency self-contained cooling units that can be installed on a slab, roof curb, or metal stand. Heater kits are available as accessory items. Units are ETL and ETLc listed.
- Install Instructions
Specification Sheet - R-454B Refrigerant
- Scroll Compressor: Industry leading technology utilized in all models for reliable performance and increased efficiency
- Hi Pressure Switches: Ensure long compressor life
- All-Aluminum Coils: Evaporator and condenser coils are designed to optimize heat transfer, minimize footprint, and increase durability
- ECM Blower Motor: Fixed torque energy efficient brushless DC ECM motor, provides 5 speeds
- Permanently Lubricated Condenser Motor: A heavy duty PSC motor for long lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow
- Low Voltage Transformer: Includes 3 Amp fuse to protect low voltage circuit
- Liquid Line Filter Drier: Factory installed at a convenient location for service
- Designed Using Galvanized Steel: With a polyester urethane coat finish, the 950 hour salt spray finish is 1.5 mil thick and resists corrosion
- Compact Footprint and Profile: Make the P95 Series easy to install and transport
- 0" Clearance: To combustibles on duct side of the unit allows for installations in tight areas
- Wire Guard Coated with Earth Friendly Epoxy and Plastic Mesh Hail Guard: A guard that will never rust and protects the units coil from being damaged
- Raised Base Pan: Allows water to drain away from the unit
- Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the front of the unit. Hi/low service ports allow refrigerant access without disrupting operation
- Easy Access: To the evaporator coil for cleaning, blower assembly removal and general maintenance
- Drain Trap: Design optimizes drainage capabilities
- Removable Top Grille Assembly: Allows ease of service to the fan motor
- Optional Electric Heat: Field installed 5-20 KW
- Notched Base Rail Supports: Allow units to be set on roof curbs or metal stands.
