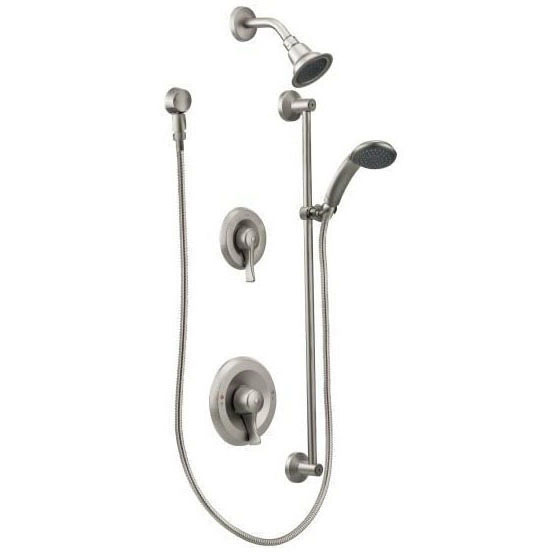

T8342EP15CBN Commercial Classic Posi-Temp Transfer All-Metal Trim Kit Brushed Nickel
Part #MT8342EP15CBN
MFG #T8342EP15CBN
Manufacturer Name : Moen
- Shower Faucet
- Type Wall Mount, Pressure Balancing
- Applicable Standard ADA, ASME A112.18.1, CSA B125.1, EPA
- Inlet Size 1/2"
- Handle Type Lever
- Number of Handles 2
- Handle Material Metal
- Valve Type Pressure Balancing Valve
- Valve Material Metal
- Showerhead Material Metal
- Color/Finish Classic Brushed Nickel
- Inlet Connection CC
- Flow Rate 1.5 GPM
- Inclusions/Features Handshower, Integral Double Check Valves for Backflow Protection, 69" Metal Hose, 30" Slide Bar, Drop Elbow, Vacuum Breaker
- Warranty 5 Year Limited
- Install Instructions
Specification Sheet - Equipped with the Positemp Pressure-Balancing Control Valve to Help Maintain Water Temperature in the Shower; This Brass Valve Directs Water Flow to Multiple Showering Functions; Brushed Nickel Finish Brings the Warm Look of Stainless to Your Bath; Handheld Shower Includes Integral Double Check Valves for Backflow Protection; Single-Function with Non-Positive Pause; Spray Face Features Easy to Clean, Rubberized Spray Nodules; Temperature and Transfer Valves Both Have ADA Compliant Lever Style Handles; Temperature Handle Operates Counterclockwise Through a 270 Degree Arc with Off at 6 O'Clock and the Maximum Hot at the 9 O'Clock Position; Adjustable Temperature Limit Stop; Pressure-Balancing Mechanism Maintains Selected Discharge Temperature to +/- 2 Degree; Transfer Valve Operates 3 Distinct Functions; Warranty 5 Year Limited
