Brand : Moen

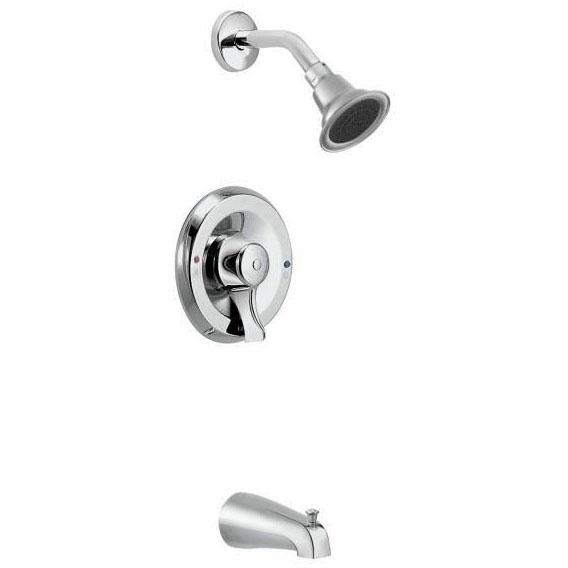

- Tub/Shower Faucet Trim
- Type Single Handle, Wall Mount
- Applicable Standard ADA, BAA, ASME A112.18.1, CSA B125.1, EPA
- Inlet Size 1/2"
- Spout Type Diverter
- Valve Type 4-Port CC, Pressure Balancing Valve
- Number of Valves/Handles 1
- Spout Material Brass
- Handle Type Lever
- Handle Material Brass
- Showerhead Material Brass
- Color/Finish Chrome Plated
- Inlet Connection CC
- Flow Rate 1.5 GPM
- Inclusions/Features Showerhead, Arm, Flange and Diverter Spout, Vandal Resistant Screws, Vandal Resistant Screws, Temperature Indicators on the Escutcheon, Adjustable Temperature Limit Stop to Restrict the Handle Travel in the Hot Direction
- Warranty 5 Year Limited
- Install Instructions
Specification Sheet - Equipped with the Positemp Pressure-Balancing Control Valve to Help Maintain Water Temperature in the Shower; Spray Face Features Easy-Clean, Rubberized Spray Nodules; Handle Operates Counterclockwise Through a 270 Degree Arc with Off at 6 O'Clock and Maximum Hot at the 9 O'Clock Position, Shut Off in Clockwise Direction; Warranty 5 Year Limited
