Brand : Nibco
End Connection : Female Thread
Material : Bronze
Valve Size : 1"

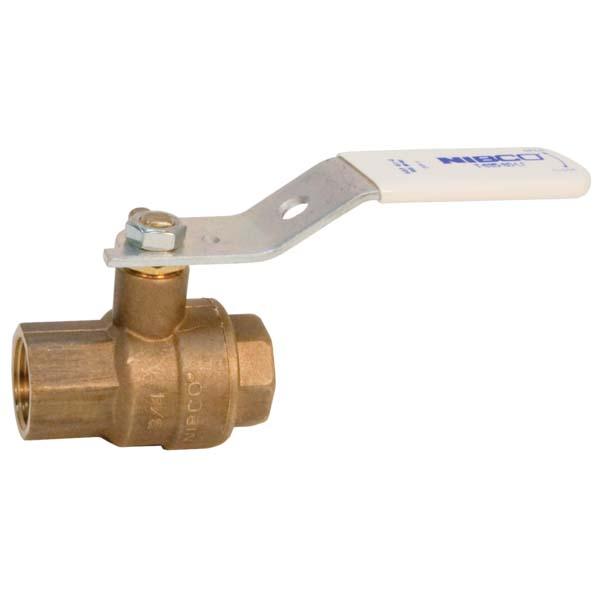

- Ball Valve
- Type 2-Piece
- Applicable Standard ANSI/NSF 61/372, MSS SP-110
- Actuation Type 1/4 Turn, Lever Handle
- Nominal Size 1"
- End Connection Threaded x Threaded
- End to End Distance 3.27"
- Ball Material ASTM B283 C69300 Silicon Bronze Alloy
- Body Material ASTM B283 C69300 Silicon Bronze
- Stem Material ASTM B371 C69300 Silicon Bronze
- Seat Material Virgin PTFE
- Seal Material EPDM
- Handle Material Steel Plated
- Port Type Full
- Temperature Rating 300 Deg F
- Pressure Rating 600 PSI Non-Shock CWP, 100 PSI at 300 Deg F
- Inclusions/Features Dezincification Resistant, Blowout-Proof Stem, Steel Plated Handle Nut, Brass Pack Gland, Double Oval in Body Casting, White Handle and Blue Hang Tag
- Application Commercial, Residential
- Lead-Free
- Packaging Quantity 40 Master per Carton
- Weight 1.1 Lb
- Warranty 5 Year Limited
- Specification Sheet
- The Nibco lead-free ball valve is constructed of lead-free dezincification-resistant (DZR) high quality performance bronze silicon alloy per ASTM specifications. The ball valve provides bubble-tight shutoff at 600 PSI. The two-piece valve is recommended for applications that deliver water for human consumption, including commercial and residential construction.
