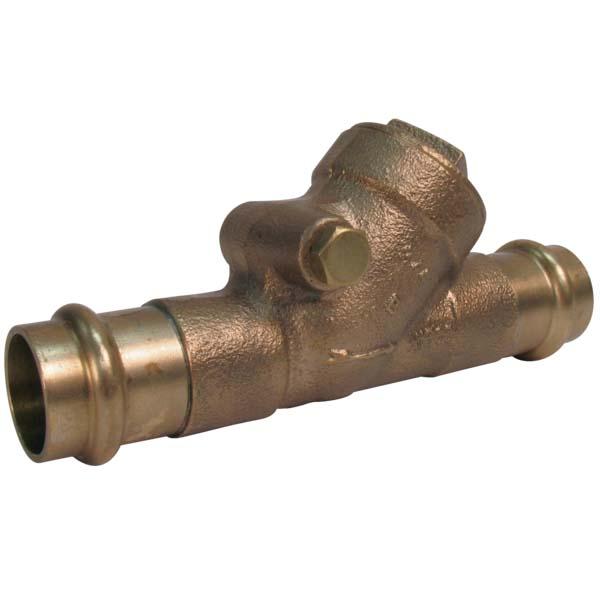

PF-413-Y Nibco 1/2" Press Domestic Bronze Swing Check Valve With Teflon Seat #125
Part #NIBPF413Y12
MFG #NF74006
End Connection : Press
Manufacturer Name : Nibco
Material : Bronze
Valve Size : 1/2"
- Valve pressure rating 200 psi/13.8 bar non shock cold working pressure
- Maximum service temperature 250 Degree F
- Y-pattern
- Renewable seat and disc
- Regrinding type
- Press x press female end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-80
- Specification Sheet
- The Nibco Press System swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features press-to-connect end connections with an inboard bead and EPDM O-rings for quick and easy joinery to the piping system. Simply applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.
