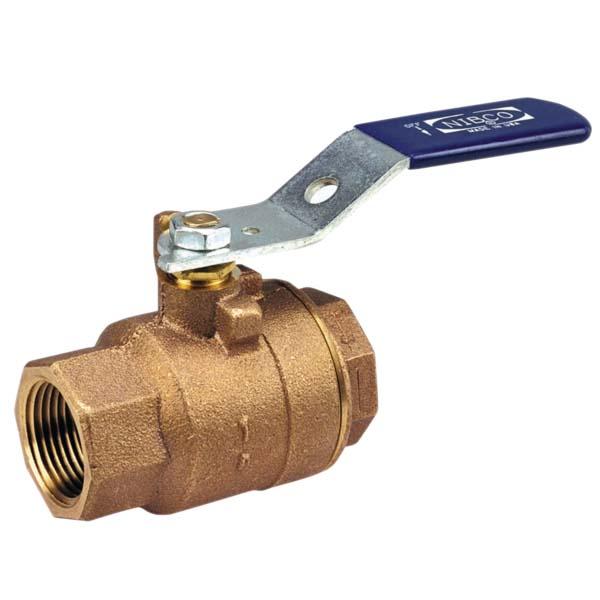

T-585-70 Nibco 3/4" IPS Domestic Bronze Full Port Ball Valve
Part #NIBT5857034
MFG #NL95008
End Connection : Female Thread
Manufacturer Name : Nibco
Material : Bronze
Valve Size : 3/4"
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Maximum temperature rating 400 Degree F
- Full port
- Chrome plated brass ball, silicon bronze stem
- Blowout-proof stem
- Standard lever handle, optional Nib-Seal
- Threaded end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
- Install Instructions
Specification Sheet - The Nibco bronze ball valve provides bubble-tight shutoff at 600 PSI. With the reinforced PTFE seat ring and brass hard chrome plated ball, the valve exhibits high chemical resistance properties. The two-piece valve is recommended for many high pressure applications, HVAC, hot and cold domestic water, low pressure steam, and compressed air.
