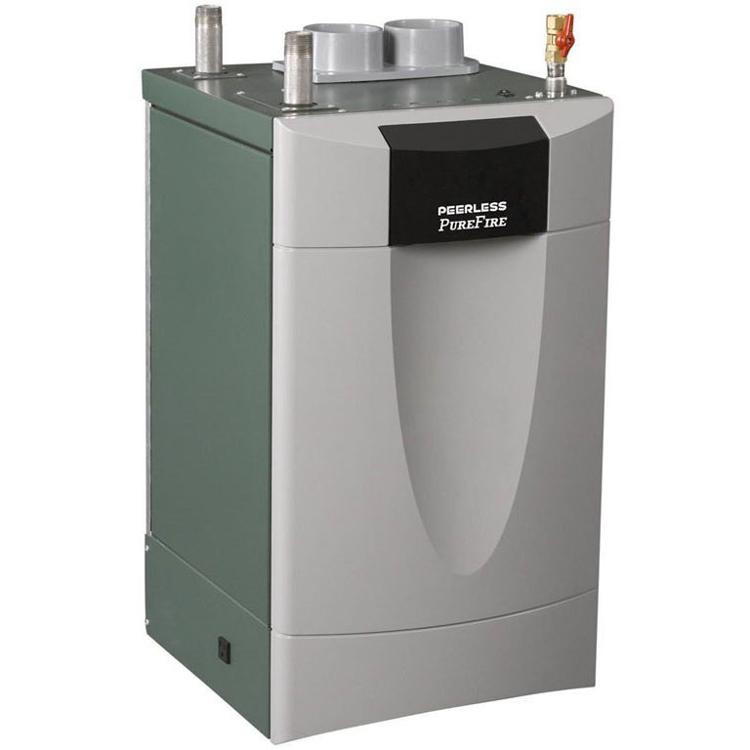

Part #PEEPF140LP

MFG #00714

Specifications

• Gas Boiler
• Type Water
• Applicable Standard ASME H, ANSI Z21.13, CSA (Canada and US), ETL (Canada and US), AHRI, CSD-1
• Supply Connection 1" Threaded
• Return Connection 1" Threaded
• Gas Type LPG
• Gas Connection 1/2" Threaded
• AGA Input Rating 35 to 140 MBH
• DOE Heating Capacity 131 MBH
• Net IBR Rating 114 MBH
• AFUE Rating 95 Percent
• Air Inlet Connection 3"
• Boiler Dimensions 17-3/16" Length x 19-1/16" Width x 29-1/2" Height
• Boiler Height Including Draft Hood 33-3/16"
• Boiler Material 304L Stainless Steel
• Water Content 1.25 Gallon
• Ignition Type Direct Spark
• Burner Type Modulating, Stainless Steel, Low Nox
• Venting Type Direct
• Vent Size 3"
• Relief Valve Details Supplied
• Pressure Rating 160 PSI
• Mounting Type Floor/Wall Mount
• Warranty 10 Year Limited
• Options PFA-1 Interface Adapter, 3" Concentric PVC Vent Termination, 3" Stainless Steel Vent Termination, Wall Mounting Bracket, Floor Mounted Steel Stand, Domestic Water Tank Temperature Sensor, System Sensor, Piping Kit, Boiler Circulator, Relief Valve, PC Software, Probe, Expansion Tank, Air Vent
• Inclusions/Features Outdoor Sensor, Built-In Condensate Trap, Condensate Switch, Condensate Collector, Sealed Combustion, Sleek, Modern Design, Compact, Lightweight and Small Footprint, Cascade Capable
• Application Residential
• Relief Valve Size 3/4" Threaded
• Flow Rate 6.5 GPM at 40 Deg F
• Voltage Rating 120 Volt AC at 60 Hertz
• Heat Exchanger Warranty 12 Year Limited, Parts and Labor Warranty 1 Year
