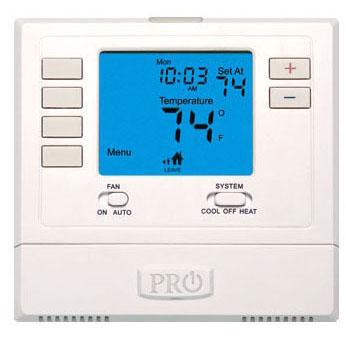

T715 7 Day Prog 2H/2C 4" Digital Thermostat
Part #PRO1T715
MFG #T715
Cooling Stages : 2
Heating Stages : 2
Manufacturer Name : Pro1
Programmable : Programmable
Type : Thermostat
- Programmable Thermostat
- Type Programmable, Digital
- Cover Type Rectangular Vertical
- Color Blue Back Light
- Voltage Rating 18 to 30 Volt AC at 50/60 Hertz
- Current Rating 1.5 Amp
- Switch Type Multi Stage
- Temperature Rating 41 to 95 Deg F (Display), 44 to 90 Deg F (Control)
- Size 4.7" Width x 1.1" Depth x 4.4" Height
- Number of Stage 2 Heat/2 Cool
- Humidity Range 90 percent RH
- Display Size 4 Sq In
- Battery Type 2AA Alkaline
- Frequency 2.4 Gigahertz
- Application Heat/Cool Conventional System
- Warranty 5 Year
- Install Instructions
Specification Sheet - Extra Large Blue Backlight Screen; Filter Change Indicator; Backlight Button; 4" Square Display; Easy Menu Driven Programming; 5/1/1 Programmable; Intuitive Wake, Leave, Return, Sleep Programming Icons; Room Temperature Calibration Adjustment; Humidity Control; Separate Heating and Cooling Swing (Cycle Rate) Adjustments; Easy Wire Color Coded Terminal Blocks; Wall Mount or Junction Box; 5 Minute Compressor Delay Protection; Universal Sub-Base; Separate B, O and L Terminals; Heating and Cooling Set Point Limits; Programmable Fan; Battery or 24 Volt Power; Advanced Humidification and De Humidification Controls; Easy Access Battery Compartment; 5 Year Warranty
