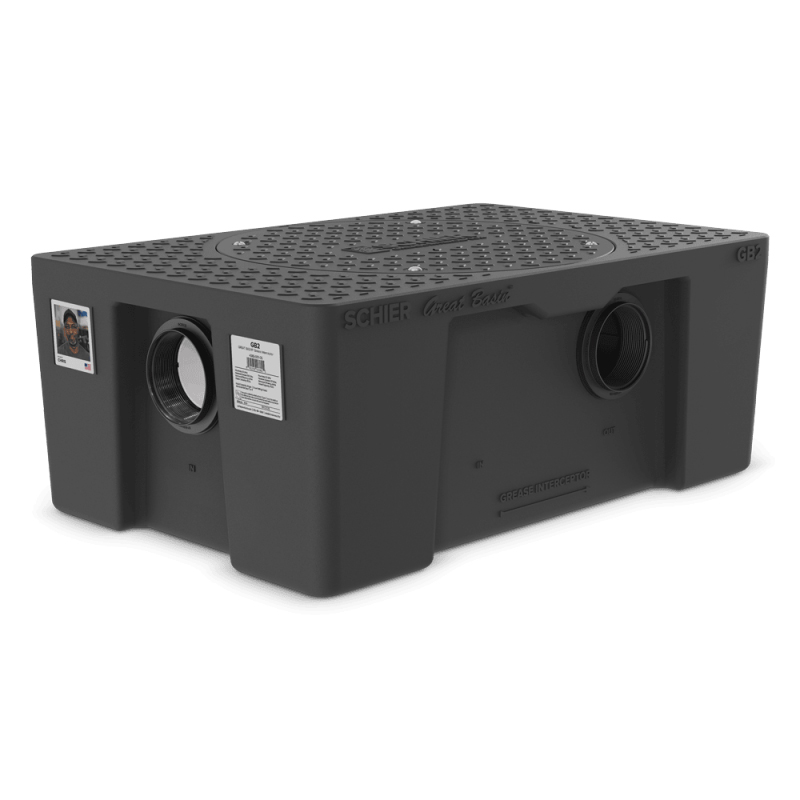

Part #SCHGB2

MFG #4065-001-05

Specifications

• Grease Interceptor
• Type Grease
• Pipe Size 3 Inch, 4 Inch
• End Connection Plain End
• Body Height 13-3/4 Inch
• Body Width 23 Inch
• Inlet to Top Height 5 Inch
• Outlet to Bottom Height 6-3/4 Inch
• Overall Length 35 Inch
• Grease Capacity 130 Pound, 127 Pound
• Water Capacity 20 Gallon
• Flow Rate 35/50 GPM
• Body Material Polyethylene
• Inclusions/Features Bolted Gas/Water Tight Polypropylene Cover, 2-1/8 to 12 Inch Field Cut Riser
• Application Gravity Drainage, Kitchen
• Applicable Standard ASME A112.14.3, CSA B481.1, IAPMO, UPC (Canada)
• Capacity 1.8 Gallon (Solid)
• Temperature Rating 140 Deg F
• Load Capacity 450 Pound
