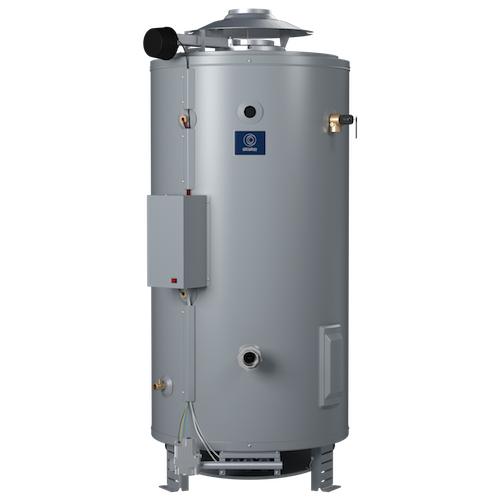

SBD100-199PET State Sandblaster Self-Cleaning 100 Gallon 199K BTU LP Gas Water Heater
Part #STASBD100199PET
MFG #SBD100-199PET
Capacity : 100 Gallons
Manufacturer Name : State
Type : Propane
Warranty : 3 Years
- Commercial Gas Water Heater
- Type Tall, Multi-Flue, Self-Cleaning
- Applicable Standard ASHRAE/IESNA 90.1, ANSI Z21.10.3/CSA 4.3, NSF, UL, CSA
- Inlet/Outlet Connection 2" Threaded Front x 2" Threaded Front
- Gas Type Propane
- Gas Connection 1/2"
- Relief Valve Details 1" Threaded, CSA/ASME T and P Relief Valve Supplied
- Venting Type Direct, Power, Horizontal
- Draft Hood Outlet/Vent Size 6"
- Input Supply Rating 199000 BTU/HR
- Tank Dimensions 27-3/4" Diameter x 70" Height
- Tank Height Including Draft Hood 75"
- Tank Material Glass Lined
- Tank Capacity 100 Gallon
- Tank Warranty 3 Year Limited
- GPH Recovery 193 GPH at 100 Deg F
- ASME Code No
- Ignition Type Intermittent Electronic
- Insulation Details Blanket
- Energy Saver Conformance Yes
- Options Manifold Kit, Leg Kit, Side Wall Power Venting Kit
- Inclusions/Features Self-Cleaning Hydro Cannon, Automatic Flue Damper, Intermittent Electronic Ignition, Power On/Off Switch, 80 Percent Thermal Efficiency, Fully Automatic Control System, Low-Profile Design, Handhole Cleanout, Plug Kits, Draft Design and No Damper
- Maximum Hydrostatic Working Pressure 160 PSI
- Thermostat Type Adjustable
- Thermostat Setting 120 to 180 Deg F
- Electrical Rating 120 Volt AC 7 Amp
- Install Instructions
Specification Sheet - Sandblaster is the Original Money-Saving Self-Cleaning Water Heater. It Provides Outstanding Performance and Installation Flexibility for New Construction and Replacement Applications. Significantly Reduces Sediment Buildup Inside the Tank. Maintains Rated Thermal Efficiency, Reduces Water Heating Costs. Maximizes Tank Life. Automatic Motorized Flue Damper Helps Minimize Standby Heat Loss. Low-Profile Draft Diverter Helps for Installation in Tight Spaces. Hot and Cold Water Connections Can be Made through Front, Top or Rear of Unit. Hydro Cannon Operates when Cold Water is Connected through Front. Eliminates Standing Pilot, Saves Energy. Anode Rods Provides Outstanding Protection Against Corrosion. Multiple Anode Rods with Stainless Steel Cores for Longer Life. Manual-Reset Gas Shut-Off Device Prevents Excessive Water Temperature. Gas Pressure Regulator and Pilot Filter. Allows Easy Access to Tank Interior for Cleaning. Pipe Nipples and Caps Included to Plug Unused Water Connections. 3 Year Limited Warranty.
