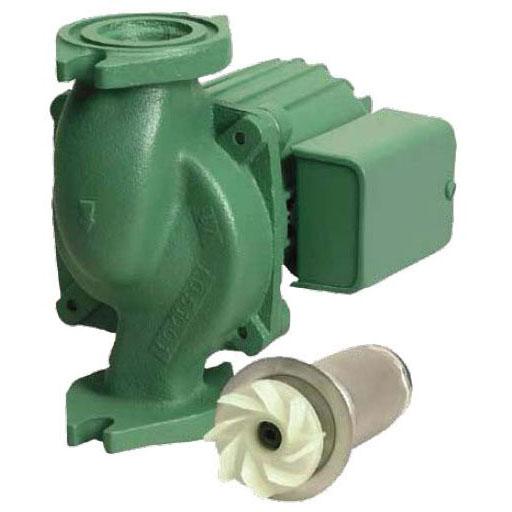

0010-SF3 Taco Stainless Steel Circulator Pump 115V 1/8 HP 3250 RPM
Part #TAC0010SF3
MFG #0010-SF3
Manufacturer Name : Taco
- Cartridge Circulating Pump
- Type Compact, Direct Drive
- Applicable Standard UL (Canada and US), NSF/ANSI 372
- Suction Size 3/4", 1", 1-1/4", 1-1/2"
- Discharge Size 3/4", 1", 1-1/4", 1-1/2"
- End Connection Flanged x Flanged
- Overall Dimensions 7-1/4" Length x 5-1/8" Width x 6-3/8" Height
- Flow Rate 0 to 33 GPM
- Discharge Head 0 to 10'
- Casing Material Stainless Steel
- Shaft Material Ceramic
- Impeller Material Non-Metallic
- Warranty 3 Year from Date of Manufacture
- Power Rating 1/8 HP
- Input Supply Rating 115 Volt AC at 60 Hertz 1 Phase 1.17 Amp
- Speed Rating 3250 RPM
- Temperature Rating 40 to 230 Deg F
- Pressure Rating 150 PSI
- Motor Type Permanent Split Capacitor, Impedance Protected
- Inclusions/Features Aluminum Stator Housing, Stainless Steel Cartridge, Carbon Bearing, EPDM O-Ring and Gasket, Low Power Consumption
- Exclusions Mechanical Seal
- Application Residential/Light Commercial, Medium-Head/Medium-Flow Water Circulating, Hydronic/Radiant Heating, Primary-Secondary Loop, Indirect Water Heater, Chilled Water Cooling, Potable Hot Water System
- Install Instructions
- Taco's High Velocity Series 0010 Cartridge Circulator is Designed for Quiet, Efficient Operation in a Wide Range of Residential and Light Commercial, Medium-Head/Medium-Flow Water Circulating Application; Unique, 00 Family Replaceable Cartridge Contains all of Moving Parts so can Service it Easily Instead of Replacing Entire Unit; Compact, Direct-Drive, Low-Power Consumption Design is Ideal for High Efficiency Job; Unique Replaceable Cartridge Design Field Serviceable; Self-Lubricating; Maintenance Free; 3 Year Warranty from Date of Manufacture
