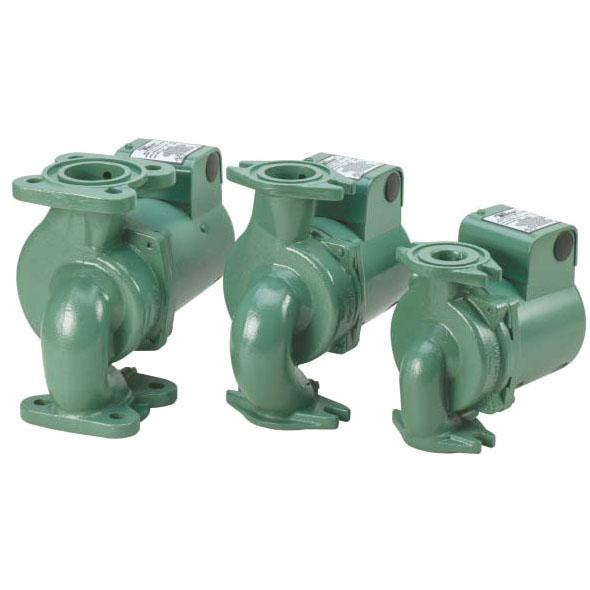

2400-20WB Taco Cast Iron High Capacity Circulator Pump 1/6 HP 3450 RPM
Part #TAC240020WB
MFG #2400-20-WB
Manufacturer Name : Taco
- Pump and Circulator
- Type High Capacity
- Overall Dimensions 6-3/8 Inch Length x 4-1/2 Inch Width
- Flow Rate 90 GPM
- Casing Material Cast Iron/Stainless Steel
- Shaft Material Stainless Steel
- Impeller Material Stainless Steel
- Shaft Seal Details Mechanical Seal
- Power Rating 1/6 HP
- Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 1.9 Amp
- Speed Rating 3450 RPM
- Temperature Rating 40 to 225 Deg F
- Pressure Rating 150 PSI
- Motor Type Open Drip Proof, Permanent Split Capacitor, Thermally Protected
- Application Hydronic Heating, In-Floor Radiant, Snow Melt, High Pressure Drop/Outdoor Wood Boiler, Chilled Water Cooling, Geothermal Heat Pump, Primary/Secondary Loop and Hydro Air Fan Coil, Open/Domestic Water Recirculation System
- Applicable Standard UL (Canada and US)
- Lead-Free
- Material Stainless Steel (Seal Faceplate), Aluminum (Motor Housing), EPDM (O-Ring/Flange Gasket)
- Motor Bearing Type Permanently Lubricated Ball Bearing
- Install Instructions
Specification Sheet - Compact, Space Saving Design; Powerful Close-Coupled, Maintenance Free Motor; Superior Efficiency, High Starting Torque; Permanently Lubricated, Sealed for Life Bearings; Rugged 1/2 Inch Stainless Steel Shaft; Carbon/Silicon-Carbide Mechanical Seal for Long Life; Universal Flange to Flange Dimensions Ideal for Retrofits; Anti-Condensate Design for Chilled Water; Dual Electrical Knock-Outs; Dual Pressure Taps, Suction, Discharge; Lead-Free
