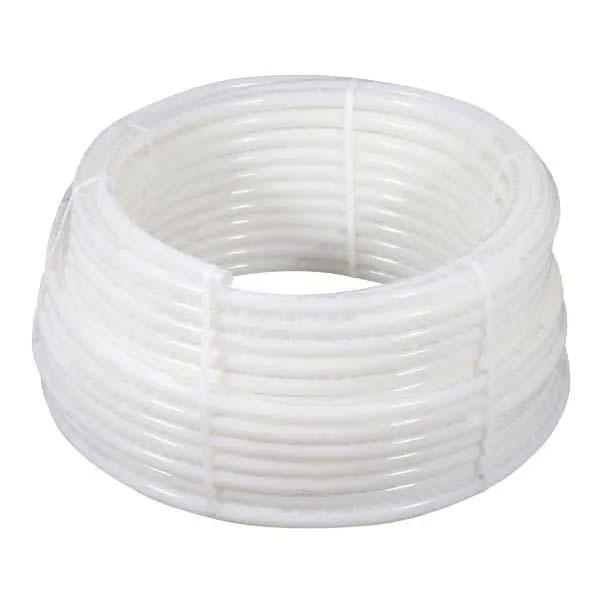

A1220750 Uponor Wirsbo hePEX 3/4" X 1000' Type A Heat PEX Tubing Coil
Part #UPOA1220750
MFG #A1220750
Application : Hydronic
Color : White
Inside Diameter : 3/4" ID
Length : 1000'
Manufacturer Name : Uponor
- Barrier Tubing
- Applicable Standard ANSI/NSF 14/61, CSA, CSA B137.5/B214, CAN/ULC S101/S102.2, CCMC, DIN 4726/9, ETL, ICC-ES, IAPMO, PPI TR-4, UL, UL 263, ULC S115
- Outside Diameter 0.875"
- Inside Diameter 0.671"
- Length 1000'
- Material Polyethylene
- Material Specification ASTM F876, ASTM F877, ASTM F1960, ASTM F2023, ASTM E84, ASTM E119, ASTM E814
- Process Extruded
- Pressure Rating 160 PSI at 73.4 Deg F
- Temperature Rating 200 Deg F
- Color White
- Weight 112.40 Lb
- Application Radiant Heating and Cooling System, Snow and Ice Melting System, Permafrost Protection System, Turf Conditioning System, Chilled Water Distribution, Hot Water Distribution
- Packaging Quantity 3 Coils per Pallet
- Nominal Size 3/4"
- Thermal Conductivity 0.22 BTU/H/Ft/Deg F
- Linear Expansion Rate 1.1"/10 Deg F per 100 Ft
- Specification Sheet
- Wirsbo hepex features an oxygen barrier that conforms to DIN 4726 for use in closed-loop hydronic piping and radiant heating and cooling applications. The tubing is rated and listed by the Hydrostatic Stress Board of PPI at 200 Degree F (93.3 Degree C) at 80psi, 180 Degree F (82.2 Degree C) at 100psi and 73.4 Degree F (23 Degree C) at 160psi. It is compatible with Uponor Propex and QS-style fittings and is manufactured in full compliance to ASTM F876 and F877. It is also listed to NSF 61 for potable-water applications.
