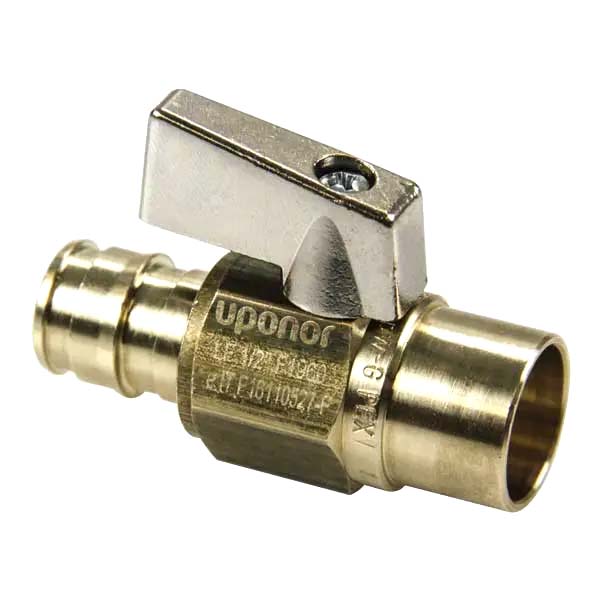

LF4807575 Uponor ProPEX 3/4" Pex Cold Expansion X Copper Ball Valve
Part #UPOLF4807575
MFG #LF4807575
End Connection : Pex Expansion X Female Sweat
Manufacturer Name : Uponor
Material : Brass
Valve Size : 3/4"
- Ball Valve
- Type Large Bore
- Applicable Standard ASME A112.18.1, ASTM F877/F1960, CSA B137.5/B125, NPC, NSF 9/61G, UPC
- Actuation Type 1/4 Turn
- Nominal Size 3/4" x 3/4"
- End Connection PEX x Female Soldered Adapter
- End to End Distance 3.43"
- Body Material C69300 Brass
- Temperature Rating 250 Deg F
- Pressure Rating 250 PSI
- Inclusions/Features In-Line Isolation Valve
- Application Plumbing System, Radiant Heating and Cooling System, Snow and Ice Melting System, Permafrost Protection System, Turf Conditioning System
- Lead Free
- Packaging Quantity 10
- Weight 0.3 Lb
- Warranty 25 Year System
- Specification Sheet
- ProPEX brass to copper (quarter-turn) ball valves feature a shutoff valve for 1/2" and 3/4" Uponor AquaPEX tubing to 1/2" and 3/4" copper pipe. These valves are not compatible with applications using glycol.
