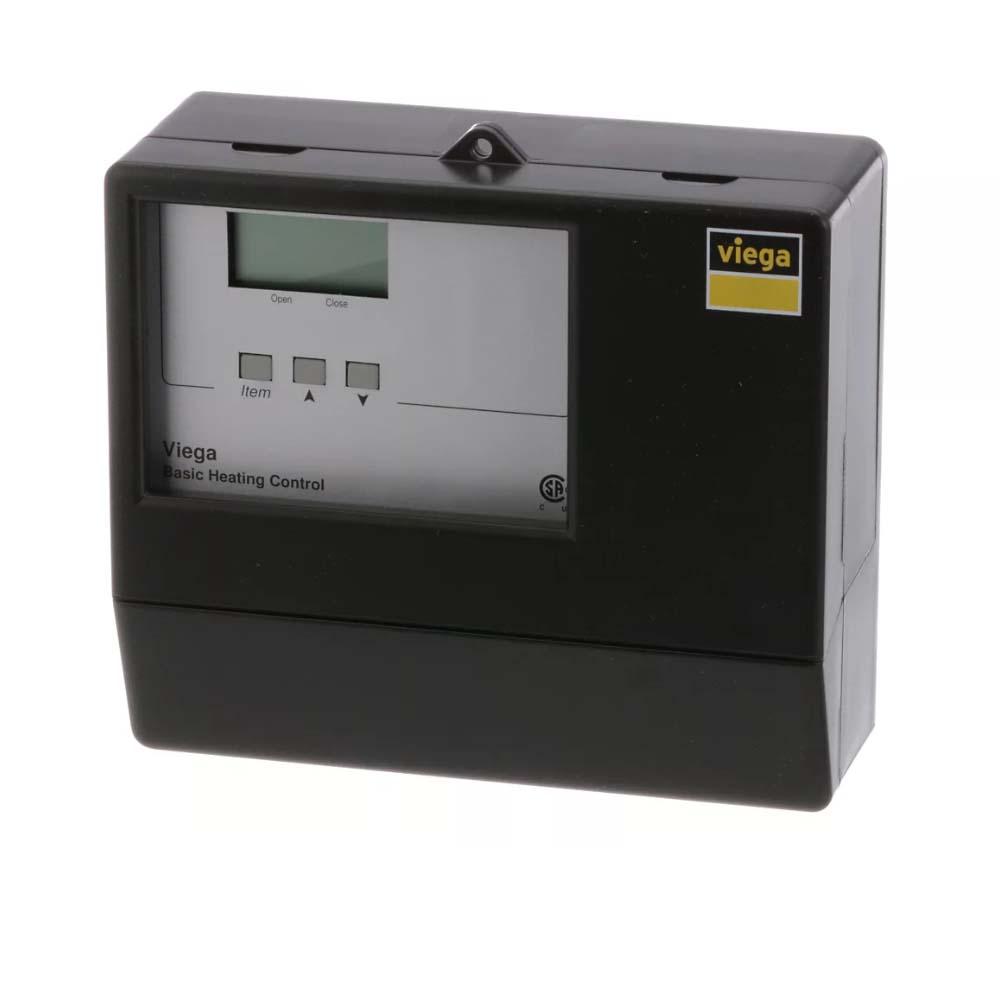

16015 BASIC HEATING CONTROL
Part #VIE16015
MFG #16015
Manufacturer Name : Viega
- Basic Heating Control
- Item Heating Control
- Type Float
- Applicable Standard CSA, CAN/ULC S101, CAN/ULC S102.2, ANSI/NSF 14/61, ICES/FCC, ASTM E84, ASTM F877
- Overall Dimensions 7-9/16" Width x 2-13/16" Depth x 6-5/8" Height
- Input Supply Rating 1300 VA 120 Volt AC at 50/60 Hertz Power Supply
- Temperature Rating 32 to 102 Deg F (Indoor)
- Inclusions/Features Outdoor/Supply Sensor, NTC Thermistor, Liquid Crystal Display
- Application Indoor
- Enclosure Material Black PVC
- Floating Output 8 VA 24 Volt AC at 0.34 Amp
- Used for Controlling System Water Temperature Based on Outdoor Reset
- Packaging Quantity 1
- Weight 3.464 Lb
- Install Instructions
- The Basic Heating Control is Designed to Control the Supply Water Temperature to a Hydronic System in Order to Provide Outdoor Reset Operation; The Basic Heating Control Uses a Floating Action Actuator Mounted on a Diverting or Mixing Valve to Regulate the Supply Water Temperature; The Control has a Liquid Crystal Display (LCD) to View System Status and Operating Information
