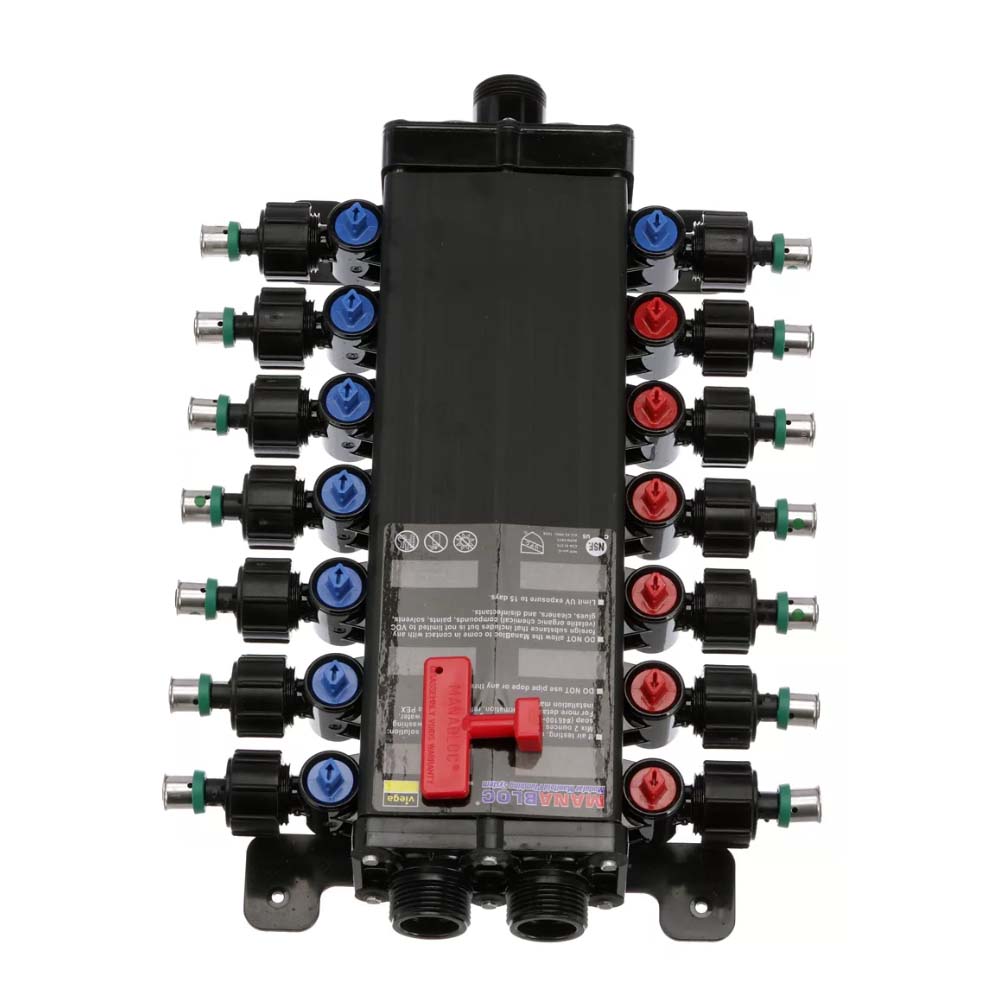

49143 1/2" 14 OUTLET POLY PEX P MANABLOC
Part #VIE49143
MFG #49143
Manufacturer Name : Viega
- Distribution Manifold
- Applicable Standard UL 1821, CSA, CAN/ULC S101, CAN/ULC S102.2, NSF/ANSI 14, NSF/ANSI 61 and 61G, AWWA C904, NSPC, ICC, IAPMO, ASTM E84, ASTM F877
- Port Size 1/2"
- Length 8"
- Width 3"
- Height 15.44"
- Header Pipe Size 1" x 5/8"
- Number of Ports 14
- Number of Valves 1
- End Connection Male Threaded x Male Threaded
- Body Material Polysulfone Plastic
- Process Molded
- Temperature Rating 180 Deg F
- Pressure Rating 100 PSI
- Lead Free
- Includes 1/4" Turn Valve, T-Handle Valve Key
- Application Hot and Cold Potable Water Distribution Systems
- Weight 5.195 Lb
- Packaging Quantity 1
- Warranty 10 Year
- Install Instructions
- The Manabloc has Separate Hot and Cold Water Inlets and Ports to Manage the Entire Plumbing System; The Manabloc Shall be Protected from UV and Foreign Substances which Include but are not Limited to VOC (Volatile Organic Chemical) Compounds, Paints, Solvents, Glues, Cleaners and Disinfectants; Factory Assembled Press Fittings Reduce Installation Errors on the Job; 10 Year Transferable Warranty
