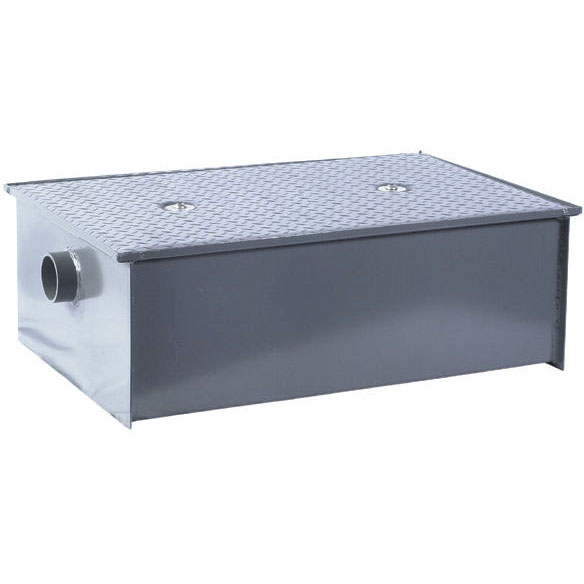

8150966 50GPM 100lb Grease Trap w/4" Inlet
Part #WATWD50
MFG #8150966
Manufacturer Name : Watts
- Grease Interceptor
- Type Grease
- Pipe Size 4 Inch
- End Connection No Hub x No Hub
- Mounting Type Floor, Recessed
- Body Height 21-1/2 Inch
- Body Width 22 Inch
- Overall Length 32 Inch
- Grease Capacity 100 Pound
- Flow Rate 50 GPM
- Body Material Steel
- Finish/Coating Epoxy Coated
- Inclusions/Features Gasketed Steel Cover, Deep Seal Trap, Hex Head Center Bolt, Draw-Off Hose, Cleanout
- Applicable Standard ASSE, CSA (Canada and US), FM, ISO 9002, IAPMO, NSF, PDI, UL, ULC, UPC, USC
- Specification Sheet
- Gasketed Skid-Proof Cover Helps Ensure a Secure Seal; Acid-Resistant Epoxy Coated Steel for Smooth Finish and Long Life; Removable Baffle Assembly and Deep Seat Trap with Cleanout Ensure Easy Maintenance; External Cast Iron Flow Control Fitting and No Hub Connections for Easy Installation
