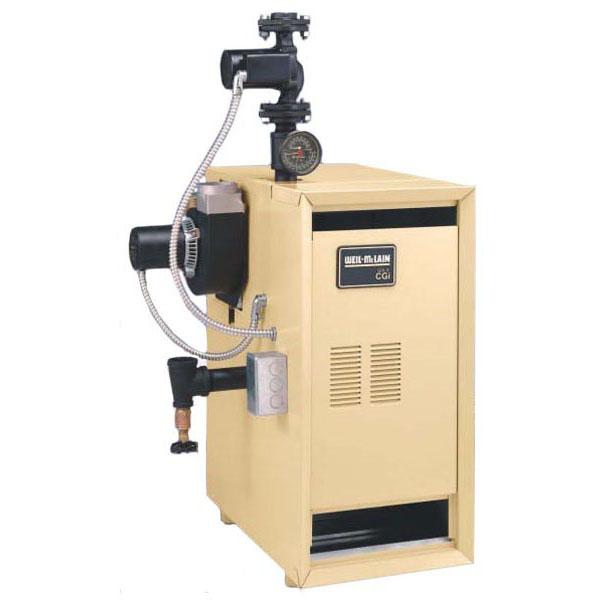

381-357-856 Weil McLain CGI-25 Series-3 84% AFUE Natural Gas Boiler With Circulator 50 Input MBH 37 Output MBH
Part #WMCGI25N
MFG #381357856
AFUE : 80.00 - 84.99%
Application : Water
BTU Output : 35,000 - 39,999
Installation Type : Floor Mount
Manufacturer Name : Weil-Mclain
- Gas Fired Water Boiler
- Type Water
- Applicable Standard ASME H, CSA, DOE, AHRI
- Supply Connection 3/4"
- Return Connection 3/4"
- Gas Type Natural
- Gas Connection 1/2"
- AGA Input Rating 50 MBH
- DOE Heating Capacity 42 MBH
- Net IBR Rating 37 MBH
- AFUE Rating 84 Percent
- Air Inlet Connection 1/2" Threaded
- Boiler Dimensions 19" Length x 23-1/4" Width x 28-3/8" Height
- Boiler Material Cast Iron
- Water Content 1.5 Gallon
- Ignition Type Intermittent Electronic
- Burner Type High Grade Stainless Steel
- Venting Type Direct, Vertical
- Vent Size 4" Diameter
- Relief Valve Details 30 PSI ASME Relief Valve
- Pressure Rating 50 PSI
- Mounting Type Floor Mount
- Warranty 20 Year (Heat Exchanger), 2 Year (Parts)
- Inclusions/Features 2-Piece Top Jacket Panel, Insulated Extended Steel Jacket, Radiation Plate, Inducer Assembly, Combination Gas Valve, Air Pressure Switch, 40 VA Transformer, Electrical Junction Box, Thermal Fuse Element, Temperature Control, Pressure-Temperature Gauge, Drain Valve, AL-29-4C Starter, Taco 007 Circulator, Expansion Tank Package, High Altitude Kits
- Application Residential, Light Commercial, Multiple Boilers, Indirect Fired Water Heating, Radiant Heating
- Install Instructions
Specification Sheet - High Efficiency; Natural Draft and Direct Exhaust Capability, All Units are Factory-Tested, Compact Design Saves Valuable Living Space, No Vertical Draft Hood and No Mechanical Vent Damper, Intermittent Electronic Ignition with Standard Components for Easy Servicing; 20 Year Heat Exchanger, 2 Year Parts Warranty
