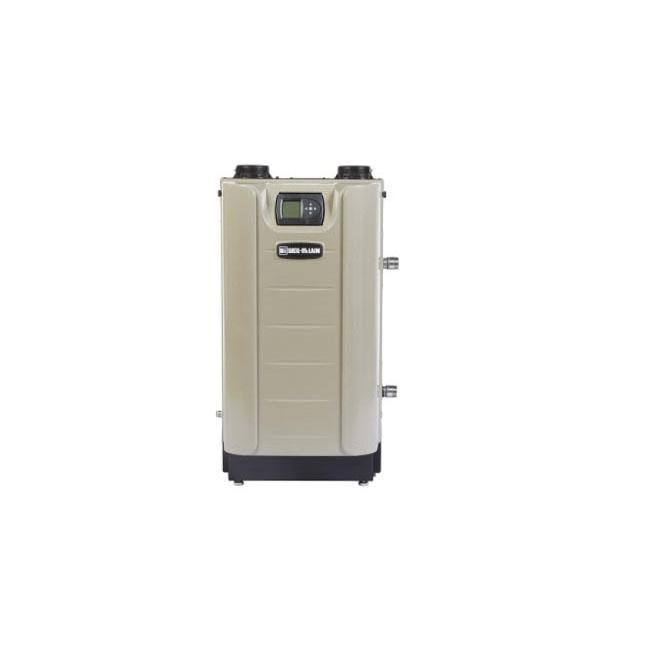

Part #WMEVG155

MFG #383900006

Specifications

• Residential Gas Fired Water Boiler
• Type Hot Water
• Supply Connection 1-1/4 Inch
• Return Connection 1-1/4 Inch
• Gas Type Natural/Liquid Propane
• Gas Connection 1/2 Inch Threaded
• AGA Input Rating 155 MBH
• DOE Heating Capacity 143 MBH
• Net IBR Rating 124 MBH
• AFUE Rating 95.1 Percent
• Boiler Dimensions 17-5/8 Inch Width x 18-5/8 Inch Depth x 40-3/4 Inch Height
• Boiler Height Including Draft Hood 42-3/4 Inch
• Water Content 3.2 Gallon
• Burner Type High-Grade Stainless Steel
• Venting Type Direct
• Vent Size 3 Inch
• GPH Recovery 4 GPH
• Mounting Type Floor Standing/Wall Mount
• Options Wall Mount Kit (220-399), Concentric Vent Kit, Condensate Neutralizer Kit, Sidewall Vent/Air Termination Kit, Maintenance Kit, Water Treatment-Inhibitor and Test Kit
• Inclusions/Features Stainless Steel Fire Tube Heat Exchanger, Non-Metallic Heat Exchanger Base, Negative Regulated Combustion, Boiler Circulator, Low Water Cut-Off, Easy Installation with Setup Wizard, Zone and/or Priority Based Control, (3) Thermostat Input, Aux Input-Flow Switch or End Switch, Aux Output-System Pump or Damper, Modbus Connectivity, Additional Heat Demand Contact, Fully Removable Jacket Front Door, Adjustable Boiler Leg, Condensate Trap
• Applicable Standard CSA (Canada and US), ASME H, AHRI, DOE
• Venting Length 100 Foot
• Turndown Ratio 5:1
• Vent/Combustion Air Pipe Size 3 Inch
• Minimum Recommended Pipe Size 1-1/4 Inch
• Vent Material PVC/CPVC/Polypropylene/Stainless Steel
