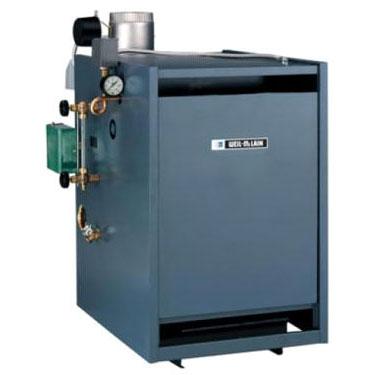

381-800-850 Weil McLain EG-65 Series-6 83% AFUE Natural Gas Steam Boiler 250 Input MBH 157 Net Output MBH
Part #WMPEG65PIDN
MFG #381800850
Manufacturer Name : Weil-Mclain
- Residential Package Gas Boiler
- Type Steam
- Applicable Standard CSA, ASME H, AHRI, DOE
- Supply Connection 3" Threaded
- Return Connection 2-1/2" Threaded
- Gas Type Natural
- Gas Connection 3/4"
- AGA Input Rating 250 MBH
- DOE Heating Capacity 209 MBH
- Net IBR Rating 157 MBH
- AFUE Rating 82 Percent
- Boiler Dimensions 29-3/4" Length x 27-5/8" Width x 33-3/4" Height
- Boiler Height Including Draft Hood 41.875"
- Boiler Material Cast Iron
- Water Content 12.6 Gallon
- Ignition Type Electronic Intermittent
- Burner Type Stainless Steel, Non-Linting Pilot
- Venting Type Automatic
- Vent Size 8"
- Relief Valve Details 15 PSI ASME Relief Valve Supplied
- Pressure Rating 50 PSI
- Mounting Type Floor Mount
- Warranty 10 Year Limited (Heat Exchanger), 2 Year Limited (Other Parts)
- Options Left End Section with Openings for Tankless Heater, Tankless Heater, Heater Cover Plate and Control
- Inclusions/Features Factory Assembled Section Block, Insulated Extended Jacket, Horizontal to Vertical Draft Hood, Combination Gas Valve for 24 Volt, Electrical Junction Box, Spill Switch, Rollout Thermal Fuse Element, High Limit Pressure Control, Low Water Cut-Off-Electrode Type, 40 Volt Amp Transformer, Steam Pressure Gauge, Syphon, Gauge Cocks and Glass
- Boiler Type Steam
- Fuel Gas
- Net IBR 157 MBH
- AFUE 82%
- Vent Type Automatic Vent
- Mount Floor
- Heat Exchanger Material Cast Iron
- Warranty 10 Year Limited (Heat Exchanger), 2 Year Limited (Other Parts)
- Install Instructions
Specification Sheet - Comes with Automatic Vent Damper for Higher Efficiencies and Reduced Fuel Consumption. Easy Access to Controls for Convenient Servicing. Configured for Natural Gas, Intermittent Electronic Ignition Only. A Versatile Gas Cast Iron Boiler for Water or Steam Applications. 10 Year Limited (Heat Exchanger), 2 Year Limited (Other Parts) Warranty. Made in USA.
