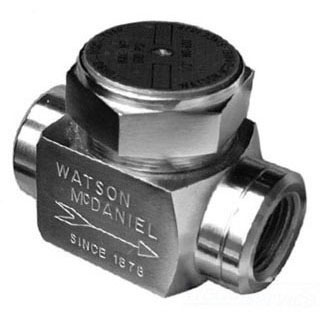

TD600 3/4 600# THERM STEAM TRAP
Part #WMTD60013N
MFG #TD600-13-N
Manufacturer Name : Watson McDaniel
- Steam Trap
- Type Thermodynamic
- Nominal Size 3/4"
- End Connection Threaded x Threaded
- Condensate Capacity 3140 Lb/HR
- Material Stainless Steel
- Temperature Rating 800 Deg F at 600 PSIG
- Pressure Rating 600 PSIG
- Media Handled Steam
- Inclusions/Features Mesh Strainer, Valve, AISI 420 Stainless Steel Disc, AISI 416 Stainless Steel Cover, AISI 304 Stainless Steel Insulation Cap
- Application Drip, Tracer
- Weight 2 Lb
- Install Instructions
Specification Sheet - Hardened Stainless Steel Seat and Disc for Extended Service Life Even at High Pressure; Single Trap will Operate Over the Entire Pressure Range of 3.5 to 600 PSIG; Suitable for Superheated Steam; Freeze Proof when Trap is Piped in a Vertical Orientation for Complete Drainage of Condensate; Three Hole Balanced Discharge Extends Life of the Seat Area; Trap will Function in any Orientation
